"Modelo S" da Série VXC

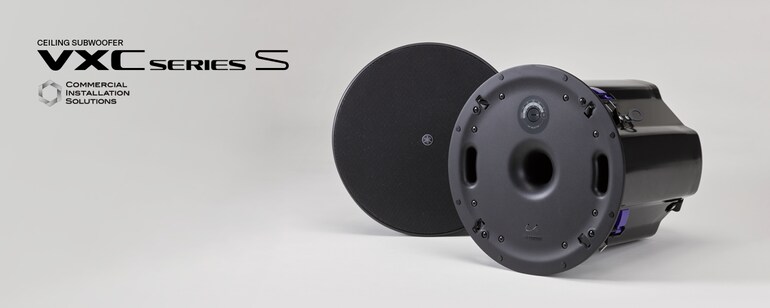

Yamaha Ceiling subwoofer VXC Series "S model"

Linha de Produtos

VXC8SB / VXC8SWSubwoofer de teto

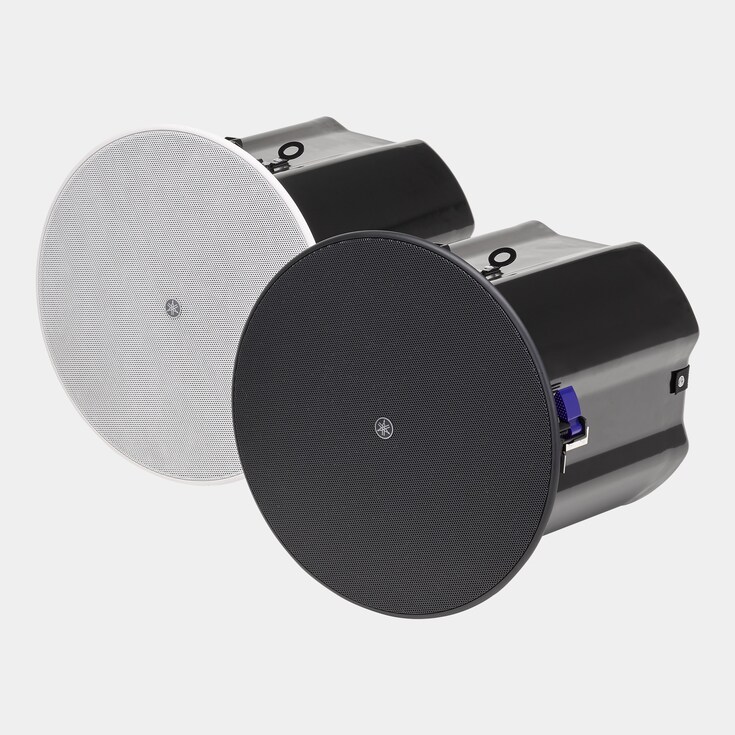

Yamaha Ceiling subwoofer VXC8SB / VXC8SW

Subwoofer de teto de 8"

Som e tamanho compatíveis com as séries VXS e VXC
O design band-pass garante graves suaves e sem distorção
Suporte nativo para ligações de baixa e alta impedância
Alça de transporte embutida para dar mais segurança no processo de instalação
Mecanismo de trava antiqueda para mais segurança na instalação
Parafusos de rosca dupla para apertar as braçadeiras de fixação do alto-falante com mais rapidez
Grades com fixação por ímã e preparada para receber pintura
Disponível em branco e preto
8,7 kg (19,2 lb), Ø324 x D314 mm (Ø12-13/16" x D12-23/64")
Para garantir a instalação segura do VXC8S, recomendamos o AB-C8S (vendido separadamente)

AB-C8SAcessório do alto-falante

Kit Anel O e Trilhos para VXC8S

Para garantir a instalação segura do VXC8S, recomendamos o AB-C8S (vendido separadamente)

Recursos

Graves naturalmente amplos dão vida à música

Os subwoofers de teto "modelo S" da série VXC são a combinação ideal para as caixas das séries VXS e VXC. A ampliação suave dos graves resulta num som de excelente qualidade, garantindo um reprodução musical mais realista, sem prejudicar o design do interior.

A Choice of Models for All Low-frequency Needs

Luxurious bass response can enhance musical presence and realism in a big way. The enclosures of VXC series S models incorporate a band-pass design to reduce unwanted vibrations and noise, making it possible to achieve a higher SPL.

Band-pass structure of VXC8S

Smart Design for Safer, Faster Installation

The VXC-S ceiling speakers come with smart mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

Carrying Band
Anti-Drop Tab

Hi-Z or Lo-Z

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

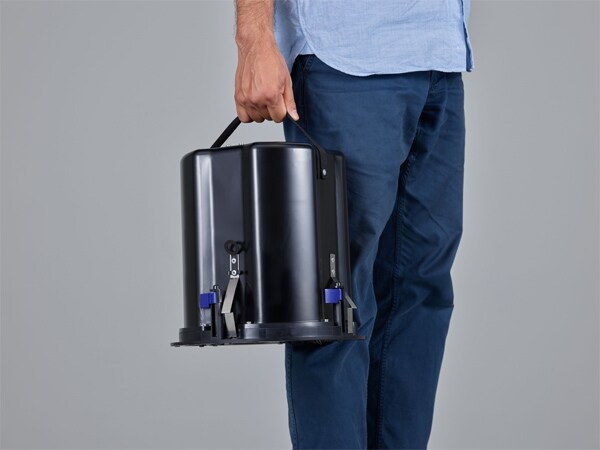

Portable

A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

Secure

An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.

Fast

Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

Streamlined

The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

Paintable

The supplied grilles can be painted any color to match interior decor.

VXS/VXC Series Painting Guide

Sistemas

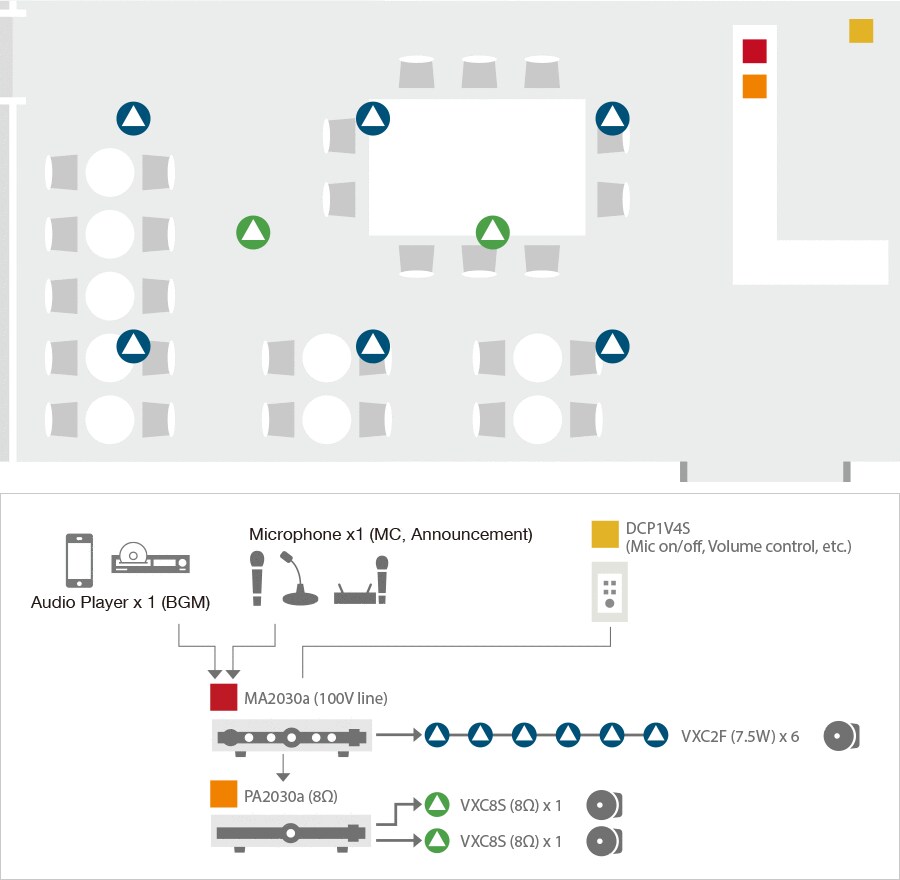

System Example: Cafe

With VXC2F speakers and a mixer amplifier MA2030a, it is possible to create a streamlined, high-performance system that allows microphone use while background music is being played. Add a power amplifier PA2030a and a ceiling subwoofer VXC8S to create enriched ambient.
